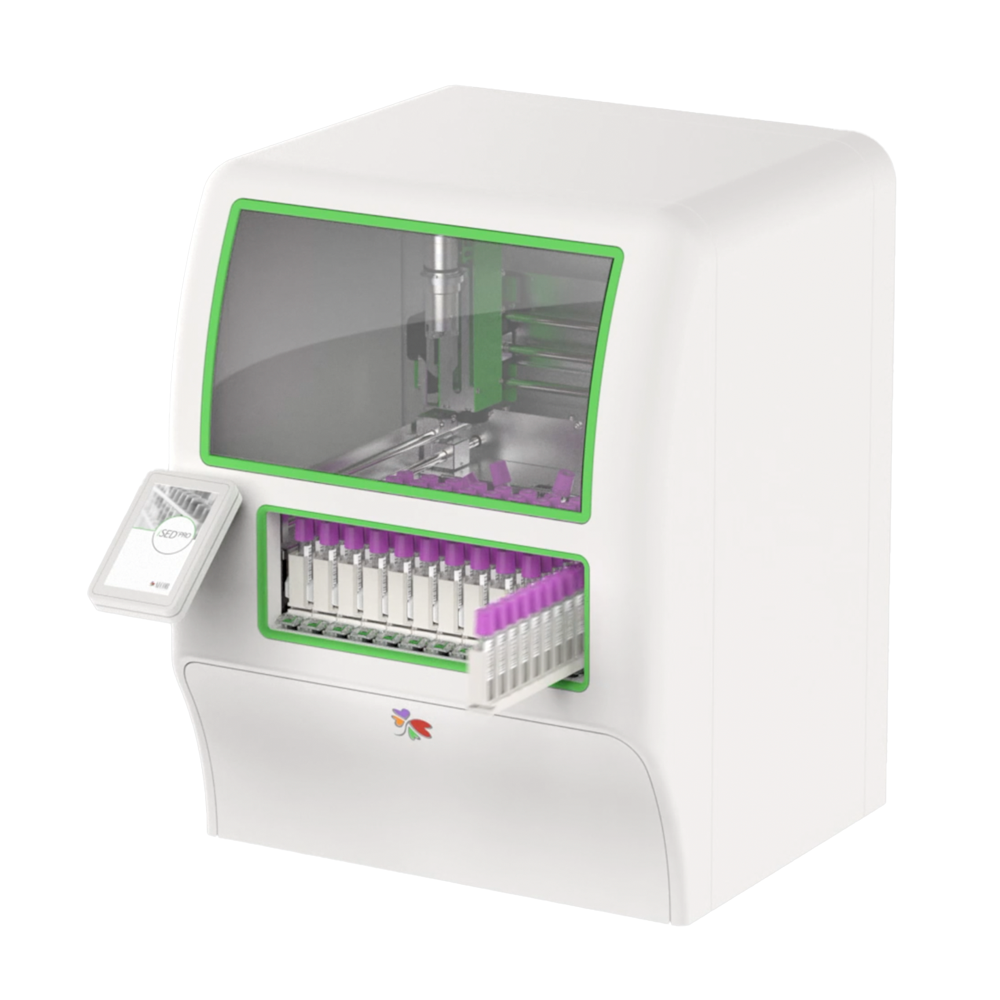

iSED® PRO ESR Analyzer
[
STATE-OF-THE ART HIGH VOLUME ESR TESTING
]
The Most Advanced ESR Testing Solution for Busy Labs
Sed rates, a valuable indicator of inflammation, are one of the most commonly performed lab tests in the world. As laboratory resources become scarcer, it is critical to avoid unnecessary time spent on inefficient ESR testing. iSED® PRO, the most advanced high-volume ESR system, significantly improves laboratory efficiency by providing virtually instantaneous results with rack-based, fully automated ESR testing.
Using the iSED® technology trusted by thousands of labs worldwide, iSED® PRO brings the same novel approach to ESR by directly measuring RBC aggregation during rouleaux formation. Measuring an earlier part of the sedimentation process allows for greater sample stability (up to 28 hours at room temperature), vastly improving ESR sample logistics when collection sites are long distances from testing locations.
Why Choose iSED® PRO?
iSED® PRO uses common hematology racks and can accommodate STAT testing. New state-of-the art features enhance overall user experience with automated QC scheduling and onboard storage of controls consumables. Capped primary EDTA tubes are loaded onto the analyzer via racks, the analyzer determines which samples need an ESR test, and then sample mixing, aspiration, and reading is performed by iSED® PRO for true walkway automation. With automatic self-cleaning and no per-test disposables required, iSED PRO has truly modernized ESR testing.
With the addition of iSED® PRO to the iSED® analyzer family, there is now an ESR solution for every workflow and throughput.
- Results within 20 seconds
- Walk-away automation
- Hematology rack compatible / 120 sample capacity
- Automated QC scheduling
- Continuous feed / random access operation
- STAT testing option
- 100 µl aspirated volume (500 µl total sample volume required)
- Highly correlated to the Westergren method
- Onboard storage of consumables and controls
- 28 hour room temperature sample stability
iSED® PRO Specifications
| Principle of Measure: | Photometric rheology |
| Result Range: | 1-130 mm/hr |
| Onboard Sample Capacity: | 120 samples if using Sysmex racks 110 samples if using Beckman Coulter racks |
| Test Throughput: | 275 samples/hour (based on cycle time) |
| Sample Stability: | 28 hours at room temperature, 48 hours refrigerated |
| Sample Rack Compatibility: | Sysmex, Mindray, Horiba, & Beckman Coulter hematology racks |
| Sample Type: | Whole blood collected in a 13 x 75 mm EDTA tube |
| Sample Mixing: | Automated onboard |
| Quality Control: | Onboard SEDiTROL® Controls with automatic scheduling |
| STAT Function: | STAT testing option |
| Washing: | Automatic washing; no washing required before or after control use |
| Barcode Reader: | Internal |
| Dimensions: | 495 x 553 x 670 mm (20 x 22 x27 in) |
| Weight: | 38 Kg |
| LIS Connectivity: | Bi-directional |
| Voltage: | 100-240VAC |
| Frequency: | 50-60 Hz |
| Power Consumption: | 500W |
iSED® PRO Ordering Information
| Item Description | Unit | Part No. |
| iSED® PRO ESR Analyzer – Series S | 1 each | 112-00120-SYS |
| iSED® PRO ESR Analyzer – Series B | 1 each | 112-00120-BCD |
| iSED® PRO Test Card: 4,000 Tests | 1 each | 120-04000 |
| iSED® PRO Test Card: 7,500 Tests | 1 each | 120-07500 |
| iSED® PRO Test Card: 12,500 Tests | 1 each | 120-12500 |
| iSED® PRO Test Card: 25,000 Tests | 1 each | 120-25000 |
| iSED® PRO Test Card: 50,000 Tests | 1 each | 120-50000 |
| SEDiTROL® Quality Control (Levels 1 & 2) | 2 x 4.0 mL | DSC01 |
| 6 x 4.0 mL | DSC06 | |
| iWASH® PRO Wash Fluid | 1.8 L | 112-12-006 |
| iWASTE® PRO Waste Container | 1.8 L | 112-12-009 |
| deepCLEAN® PRO Cleaning Solution | 3 x 3.0 mL | 112-12-022 |
| High Capacity Thermal Printer | 1 each | 112-12-011 |
| High Capacity Thermal Printer Paper | Pack of 5 | 112-12-012 |
| Beckman Coulter Rack Carrier | 1 each | 112-12-010 |
